Highsider 7 Inch Black LED Headlamp RENO TYPE 3

HIGHSIDER 7 inch LED headlamp RENO TYPE 3

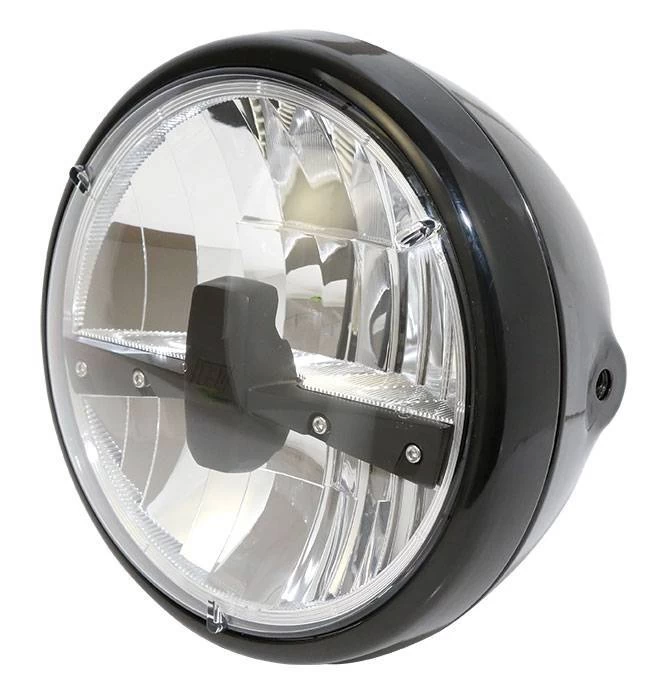

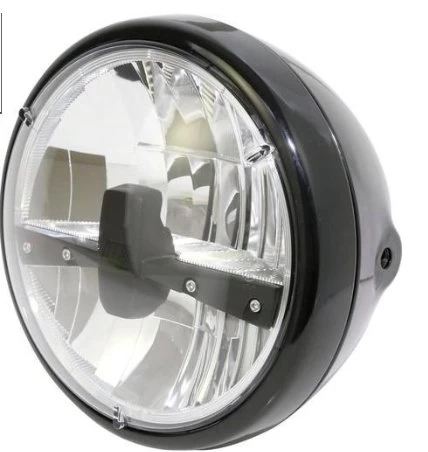

Innovative Power-LED headlight with parking light in a black high gloss metal housing for side mount. This model comes with chromed LED-insert, black bulb shield and clear lens. The headlight is equipped with an asymmetric reflector – approved only for right-hand driving, E-marked.

Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

Dimensions headlamp:
Housing diameter: 200 mm
Diameter headlight insert: 178 mm
Housing depth: 160 mm
Hole spacing mounting holes (centre – centre): 170 mm
Hole spacing from mounting hole to the end of housing: approx. 90 mm

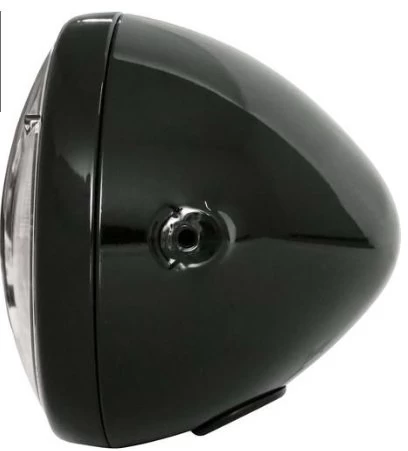

Side mount with an M8 mounting bolt

Cable assignment headlight
Black = ground
Red = low beam, current consumption at 12 volt: 18 watt, approx. 1132 lumen
White = high beam, current consumption at 12 volt: 30 Watt, approx. 1770 lumen
Black = ground
Brown = position light, current consumption at 12 volt: 0.7 Watt

Delivery contents: 1 Pcs. inclusive mating connector with cable for H4 bulb, length: 210 mm

Cable assignment

• Green = ground
• Blue = high beam
• White = low beam

Note: Asymmetric reflector – approved only for right-hand driving.
