HIGHSIDER 7 inch LED headlamp RENO TYPE 3

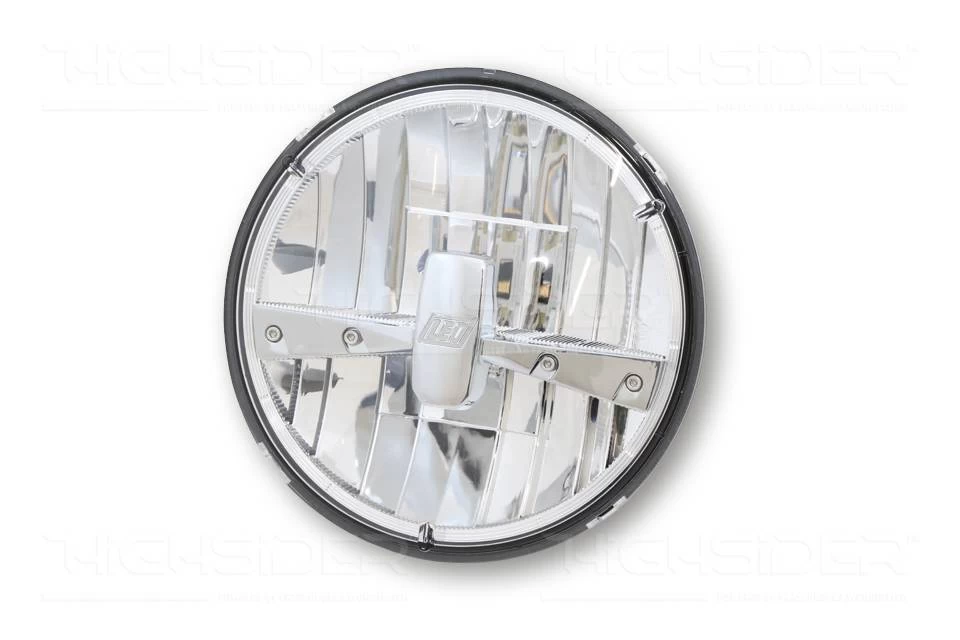

Innovative Power-LED headlight with parking light in a chromed metal housing for side mount. This model comes with a chromed LED-insert, chromed lens shield and clear lens. The headlight is equipped with an asymmetric reflector – approved only for right-hand driving, E-marked.
Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Dimensions headlight:
Housing diameter: 200 mm
Diameter headlight insert: 178 mm
Housing depth: 160 mm
Hole spacing mounting holes (centre – centre): 170 mm
Hole spacing from mounting hole to the end of housing: approx. 90 mm
Side mount with an M8 mounting bolt
Cable assignment headlight
- Black = ground
- Red = low beam, current consumption at 12 volts: 18 watts, approx. 1132 lumen
- White = high beam, current consumption at 12 volt: 30 Watt, approx. 1770 lumen
- Black = ground
- Brown = position light, current consumption at 12 volt: 0.7 Watt
Delivery contents: 1 Pcs. inclusive mating connector with cable for H4 bulb, length: 210 mm
Cable assignment
- Green = ground
- Blue = high beam
- White = low beam
Note: Asymmetric reflector – approved only for right-hand driving.
