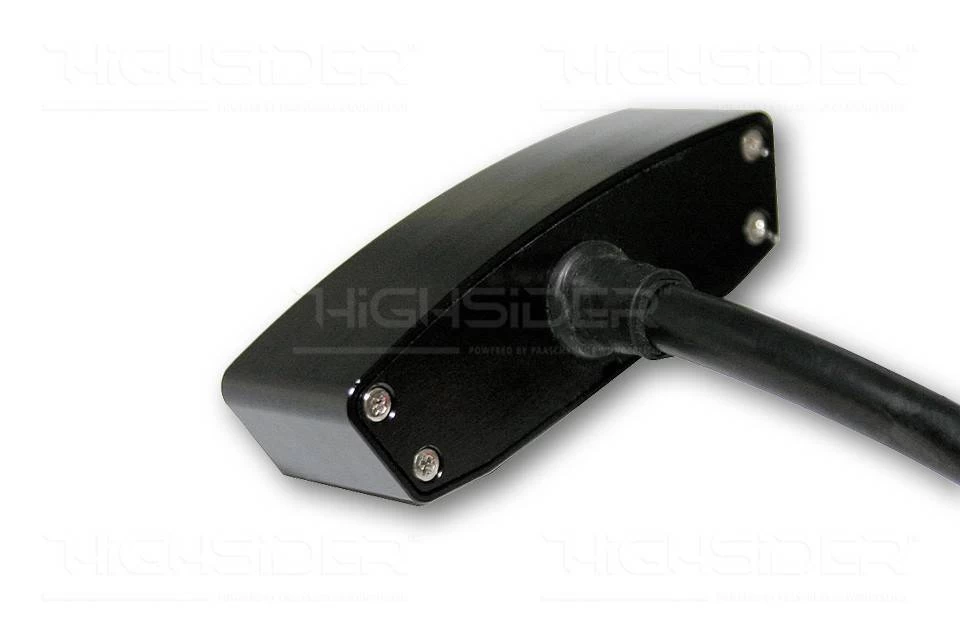

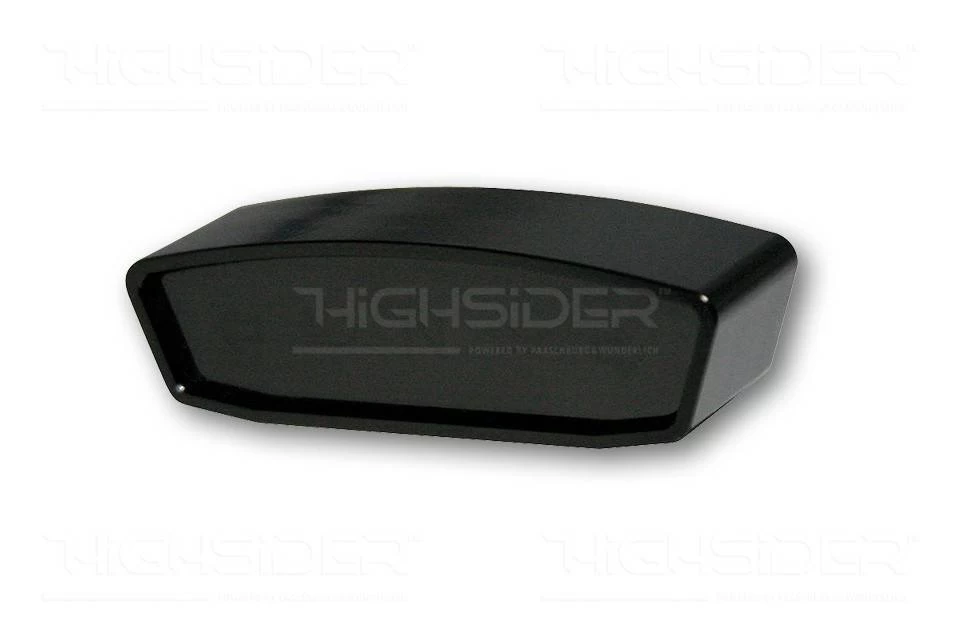

Highsider CNC Aluminium Indication Lights Black

Black anodized indication lights with a CNC-milled aluminium housing – also to built-in – and smoke lens. In operating, mode the corresponding icon will be displayed.

The 5 indicator lights are:
– 2x Turn signal
– High beam
– Neutral
– Oil-warning

That suits you best – our expansive HIGHSIDER equipment is perfectly fitting for your motorcycle. With a maximum of quality and functionality, you can design your bike according to your wishes.

Dimensions
Width: 57 mm
Height: 17.5 mm
Depth: 18 mm

Cable assignment
Black (ground) + orange = indicator left
Black (ground) + blue = indicator right
Black (ground) + yellow = high beam

If neutral or oil-warning is switched on minus pole:
Connect the grey cable to neutral signal and brown to 12 V (+).
Connect the green cable to the oil warning signal and violet to 12 V (+).

Delivery contents: 1 Pcs.

Optional available

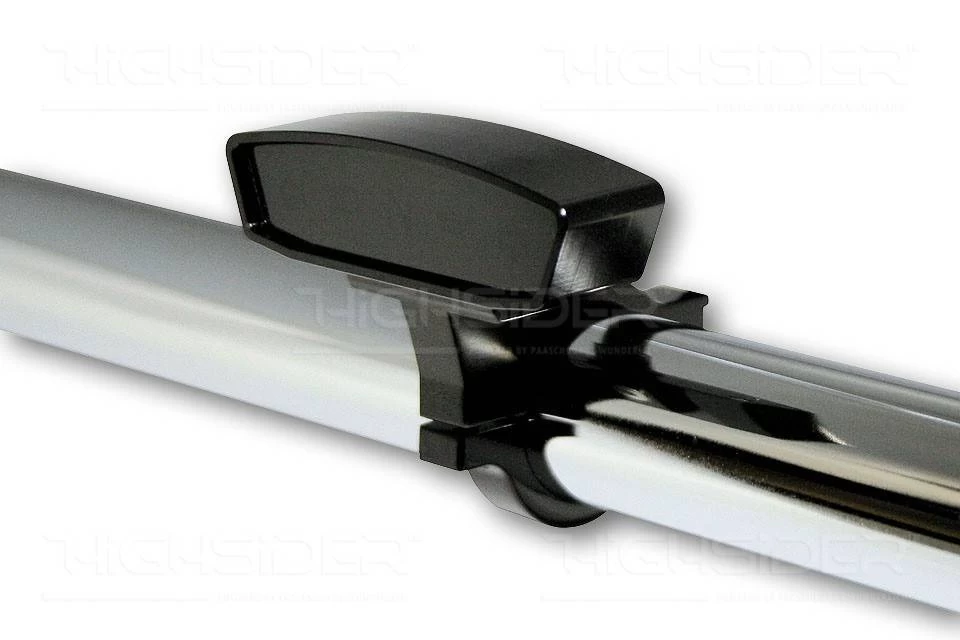

Alu bracket for 22 mm (7/8 inch) and 1-inch handlebars
