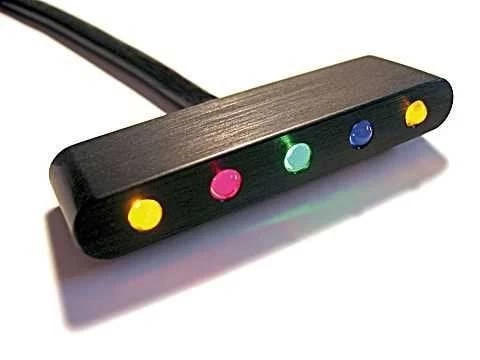

The Motosign mini is the indicator lights unit accompanying the Motoscope mini.
The Motosign Mini has a compact design and features 5 coloured LEDs. Resistors are included in the delivery.
Technical data
Length, height, depth: 46 x 7 x 13 mm
Weight: approx. 18 g incl. cable
Number of LEDs: 5
Operating voltage: 9 V – 18 V
Operating temperature: -20° to + 70°C
Length of the connection cable: approx. 50 cm
Mounting via two M3 threaded holes on the rear side
LED colours:
2 x green for turn signal left/right or 1 x turn signal and 1x warning light
1 x Green for Neutral
1 x blue for high beam
1 x red for the warning light
The casing
The high-quality aluminium casing is machined from a solid block using CNC technology and comes in anodized or mirror polished finish.
Secure mounting with two threaded holes (M3) on the backside.
The components are completely moulded-in, the casing is water-tight and resistant to vibrations.
Parts delivered
Motosign mini with approx. 50 cm connector cable (9 wires), connecting diagram.
Please note the two orange LEDs are replaced with green ones according to EU regulations since 2011.
