Shin Yo LED Rear / Indicators Fineline Smoke

SHIN YO LED indicator / rear light FINELINE, E-mark for rear, black housing, smoke lens.

Black sturdy plastic housing with rubber handle and smoke glass. The FINELINE indicator has a light guide system that is equipped with 4 SMDs. A light guide is a structure designed to transmit light from a light source to a point at some distance with minimal loss. With its countless positive functions, such as light color and light intensity, this LED indicator even meets the most demanding users.

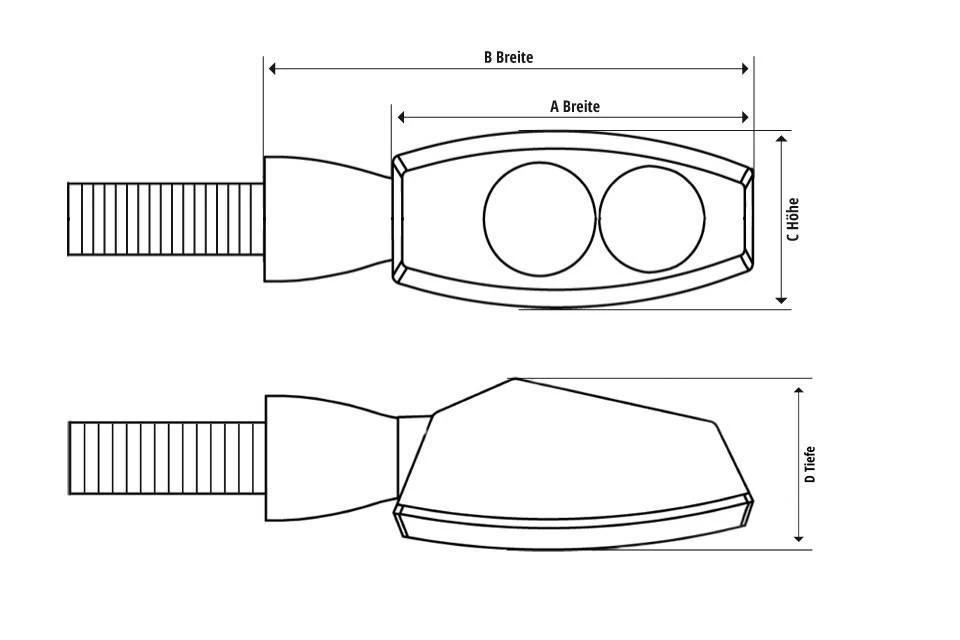

Size:
Width A: 58 mm
Width B: 70 mm
Height C: 17 mm
Depth D: 25 mm
Screw with thread: M8x1.25 mm

Connection:
Yellow: indicator (+)
Black: ground (-)
White: position light (+)

Connection:
Yellow: indicator (+)
Black: ground (-)
White: positionlight (+)

The price is for 2 pieces
